Small Precision Extrusion Casting Test Line

Small Precision Extrusion Casting Test Line

FDSI-22

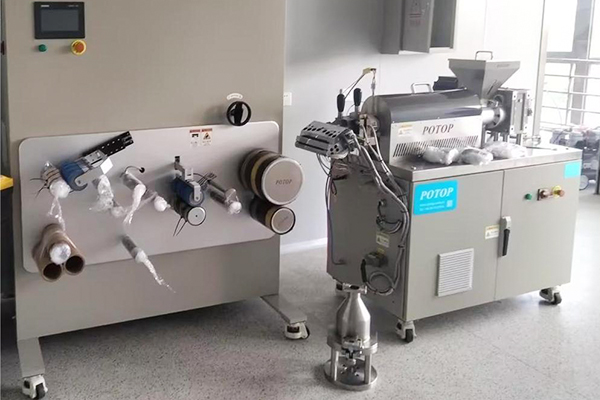

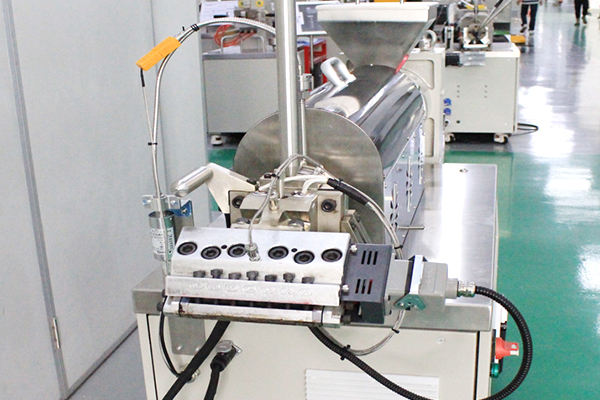

The small precision extrusion casting experimental line consists of a precision single screw extruder, a set of casting die head, and a set of precision casting auxiliary machine set, which can realize all functions of screw plasticizing extrusion, casting, traction, edge cutting, winding, and edge collection of a casting line; the split structure is easy to carry and move, and the integrated design is easy to use and operate, which can greatly improve the experimental efficiency and shorten the product development cycle. It is an ideal experimental equipment for polymer material casting molding.

Consult

Features
Technical Indicators
Overall Dimension

*The screw is driven by a servo motor, with stepless and precise speed regulation, stable plasticization and good consistency *Digitally designed casting die head, smooth flow channel without dead corners and material stagnation, and uniform material discharge *Each power roller is independently driven by a servo motor, with precise speed control and good synchronization performance *The height of the casting roller can be raised and lowered to meet the process requirements of casting molding of materials with different melt strengths *Hard chrome-plated mirror roller, with high surface finish and no rust *Based on PLC control system and touch screen operation interface, the equipment runs stably and the human-computer interaction is friendly *Important experimental data is measured and displayed in real time with graphics and text, which is convenient for observation *Humanized structural design, more convenient operation *Optional online defect visual inspection system *Optional constant tension and follow-up roller winding device to improve the film winding quality *Optional air knife or electrostatic adsorber to improve the adsorption effect between the melt and the roller surface Application range *Polymer material casting molding experiment *Casting production process research and parameter optimization *New material casting performance test *Masterbatch dispersion performance test evaluation
Applicable materials PE, PP, PET, PA, TPU, ETFE, etc. Screw diameter φ25mm Screw aspect ratio 28 Screw speed 0-120rpm Die width 200mm Product width 0-150mm Product thickness 0.02-0.1mm Roller width 220mm Line speed 0-10m/min Pressure measurement range 0-50MPa Pressure measurement accuracy 0.5%F.S Extruder temperature control range Room temperature -350℃ Temperature control accuracy ±1.0℃ Working power Three-phase five-wire 380VAC±10%, 50Hz Working air source Compressed air, 6-8bar Cooling water Soft water at room temperature, supply and return pressure difference: 2.5-4.0bar Working environment Ambient temperature: 10-40℃; Relative humidity: ≤ 80%, no condensation Rated power About 21kW (including liquid medium roller temperature regulator) Length × width × height 2850mm×1050mm×1750mm Machine weight About 1800kg

Applicable materials	PE, PP, PET, PA, TPU, ETFE, etc.
Screw diameter	φ25mm
Screw aspect ratio	28
Screw speed	0-120rpm
Die width	200mm
Product width	0-150mm
Product thickness	0.02-0.1mm
Roller width	220mm
Line speed	0-10m/min
Pressure measurement range	0-50MPa
Pressure measurement accuracy	0.5%F.S
Extruder temperature control range	Room temperature -350℃
Temperature control accuracy	±1.0℃
Working power	Three-phase five-wire 380VAC±10%, 50Hz
Working air source	Compressed air, 6-8bar
Cooling water	Soft water at room temperature, supply and return pressure difference: 2.5-4.0bar
Working environment	Ambient temperature: 10-40℃; Relative humidity: ≤ 80%, no condensation
Rated power	About 21kW (including liquid medium roller temperature regulator)
Length × width × height	2850mm×1050mm×1750mm
Machine weight	About 1800kg
