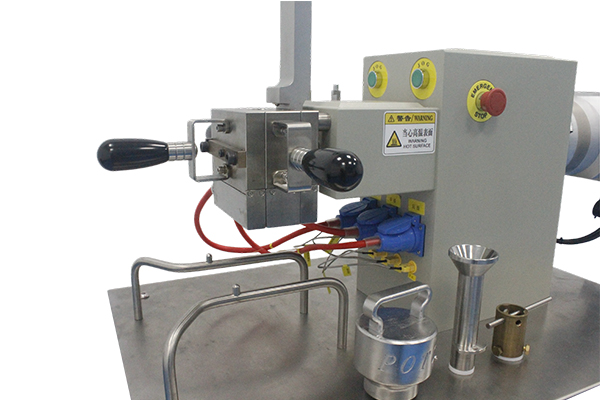

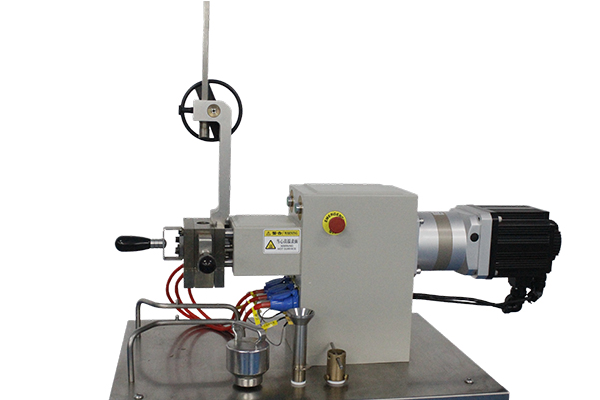

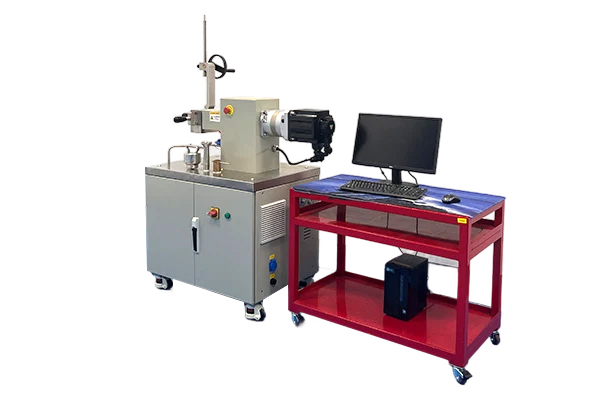

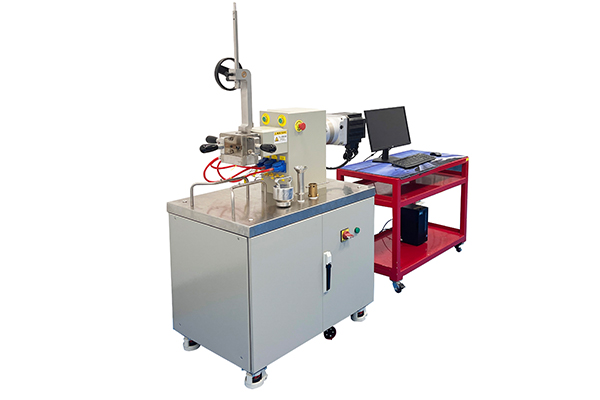

Torque Rheometer

RTHI-06/02
The torque rheometer is an ideal device for studying the flow, plasticization, heat and shear stability of materials. The rheometer provides a dynamic measurement method that is closer to actual processing. It can continuously, accurately and reliably measure the rheological properties of materials under conditions similar to actual processing, such as the mixing of multi-component materials, cross-linking and curing of thermosetting resins, vulcanization of elastomers, dynamic stability of materials, and the influence of screw speed on system processing performance.

Consult

Features
Technical Indicators
Overall Dimension

*Non-contact dynamic torque sensor is used, with high data test accuracy and good repeatability *Building block structure design, the internal mixing chamber and rotor can be flexibly disassembled and assembled, and the material can be easily cleaned *The internal mixing chamber and rotor are made of high-performance corrosion-resistant and wear-resistant materials *High-performance servo motor, wide speed regulation range, more stable speed *Powerful and good human-computer interaction based on self-developed special software *High torque and temperature measurement accuracy, sensitive to subtle differences in formula *Humanized structure design, more convenient operation Application range *Polymer material formula design *Raw material performance and quality inspection *PVC melting property test *Plasticizer absorption performance test of PVC dry blend *Thermal and shear stability test of thermoplastic materials *Formula design of sintering molding materials of inorganic powders such as metals and ceramics
Applicable materials PP/PE/PVC and other plastics, rubber, inorganic/organic mixtures, etc. Mixer chamber volume 55ml Rotor type Roller as standard, optional customization of Banbury, Cam, Sigma, Delte Rotor speed 0-187.5rpm Rotor speed ratio 3:2 Torque measurement range 0-200Nm Torque measurement accuracy 0.5%F.S Temperature control range Room temperature -450℃ Temperature control accuracy ±1.0℃ Working power supply Three-phase five-wire 380VAC±10%, 50Hz Working gas source Compressed air, 6-8bar Working environment Ambient temperature: 10-40℃; Relative humidity: ≤ 80%, no condensation Rated power About 6kW Length × width × height 1173mm×610mm×1578mm Machine weight About 350kg

Applicable materials	PP/PE/PVC and other plastics, rubber, inorganic/organic mixtures, etc.
Mixer chamber volume	55ml
Rotor type	Roller as standard, optional customization of Banbury, Cam, Sigma, Delte
Rotor speed	0-187.5rpm
Rotor speed ratio	3:2
Torque measurement range	0-200Nm
Torque measurement accuracy	0.5%F.S
Temperature control range	Room temperature -450℃
Temperature control accuracy	±1.0℃
Working power supply	Three-phase five-wire 380VAC±10%, 50Hz
Working gas source	Compressed air, 6-8bar
Working environment	Ambient temperature: 10-40℃; Relative humidity: ≤ 80%, no condensation
Rated power	About 6kW
Length × width × height	1173mm×610mm×1578mm
Machine weight	About 350kg
